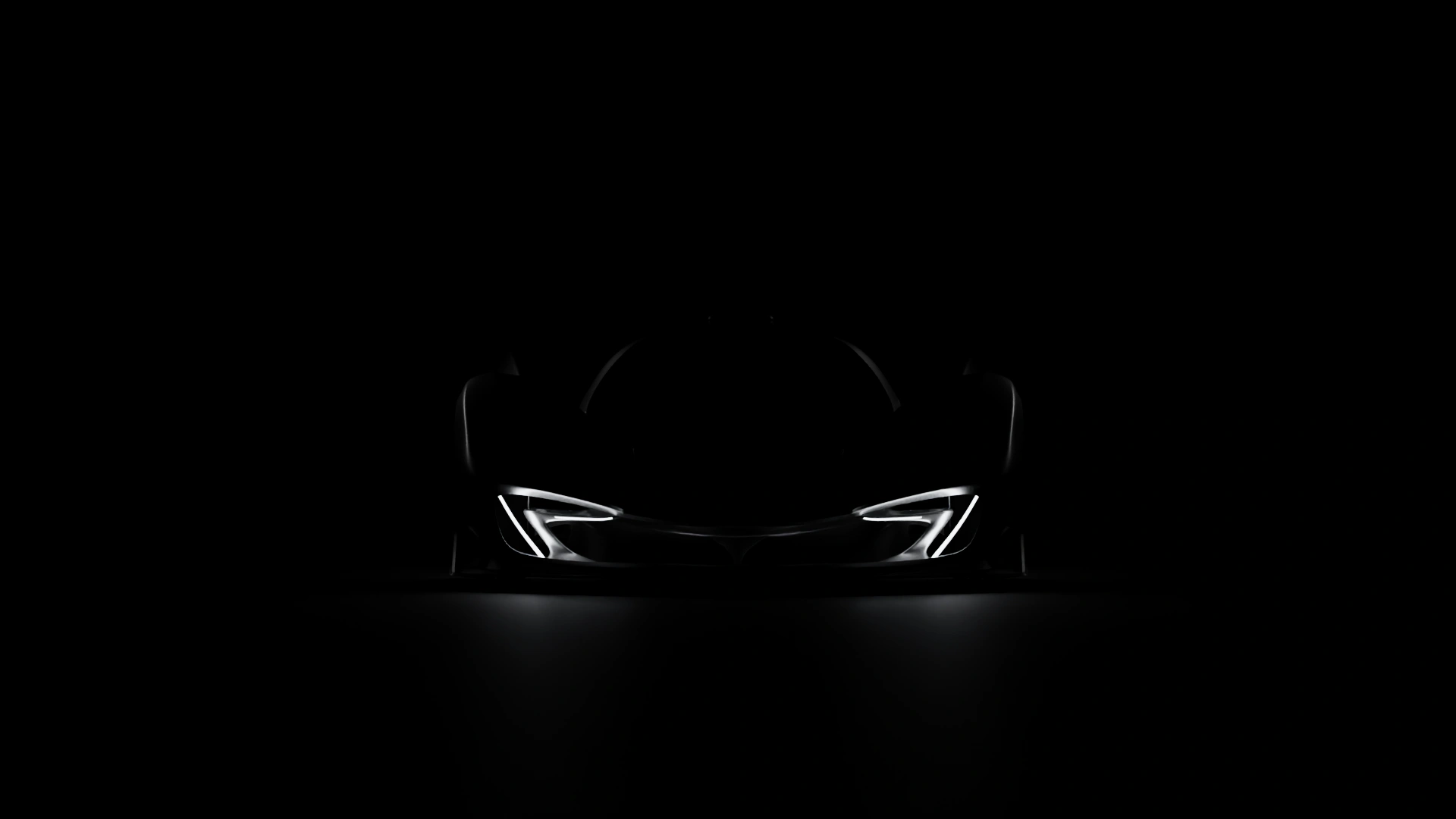

McLaren Z1 in darkness, symmetrical front view with illuminated daytime running lights

McLAREN Z1THE LAST OVERTURE

Enter plays a nine-second cinematic sequence with designed sound. The engine layer is a processed library recording, not the Z1. Audio sources are credited after entry.

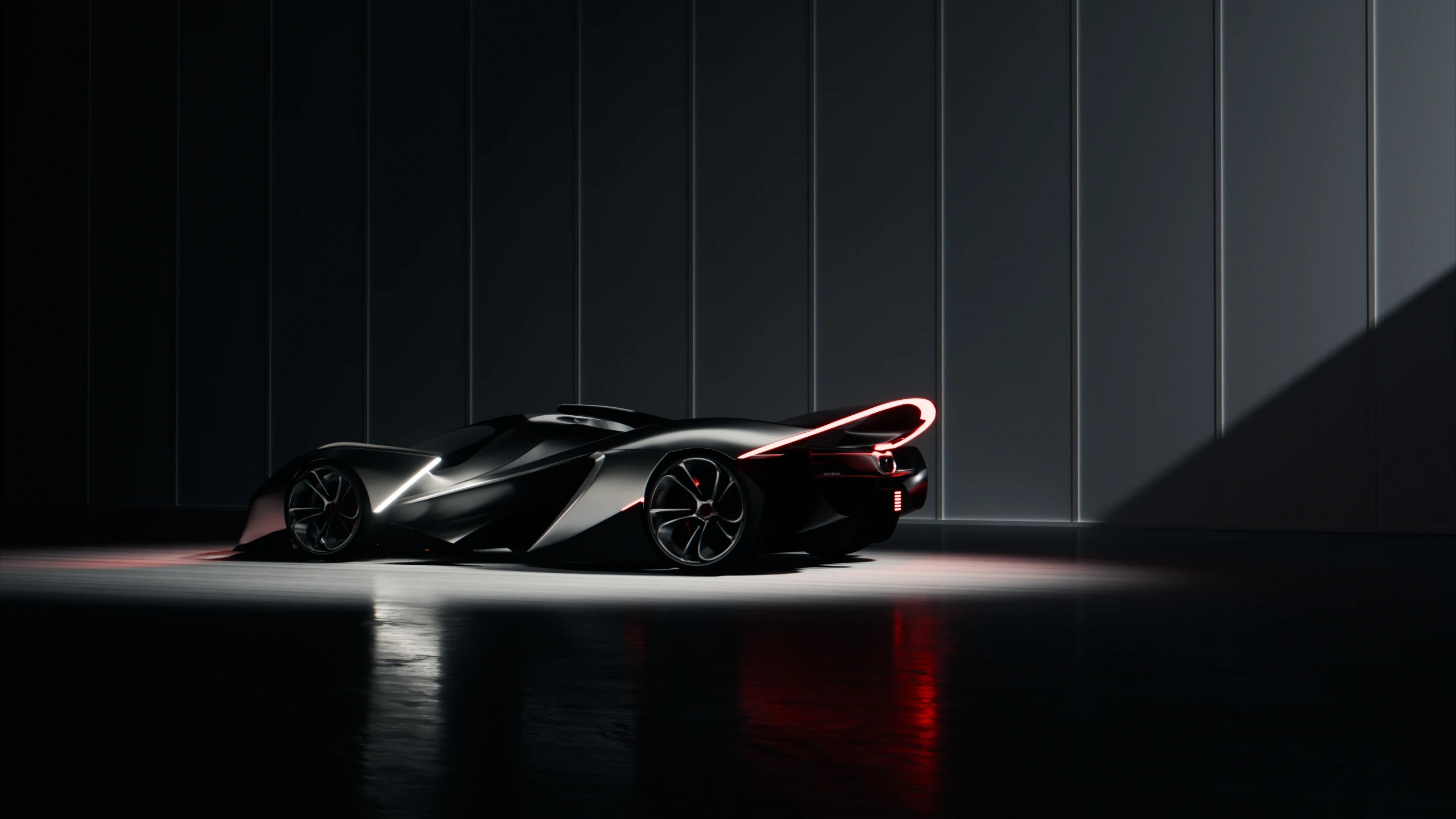

McLaren Z1 low rear quarter in a dark architectural studio
02THE LAST OVERTURE내연기관의 마지막 찬가
THE LAST OVERTURE
A MECHANICAL ORGANISM
03LUNG → FORM폐에서 시작된 형태
PLAN SHAPE

The two lobes of the lung become the sidepods, and the gap between them becomes the spine that houses the V12. The driver sits where the airway divides.

폐의 두 엽은 좌우 사이드포드가 되고, 그 사이의 틈은 V12를 품은 엔진 스파인이 된다. 기관지가 갈라지는 자리에 운전자가 앉는다.

Reference: a transparent lung holding mechanical organs
01 REFThree references: the transparent lung, the lung abstracted into two lobes and a central slot, and a metal surface running along a central spine

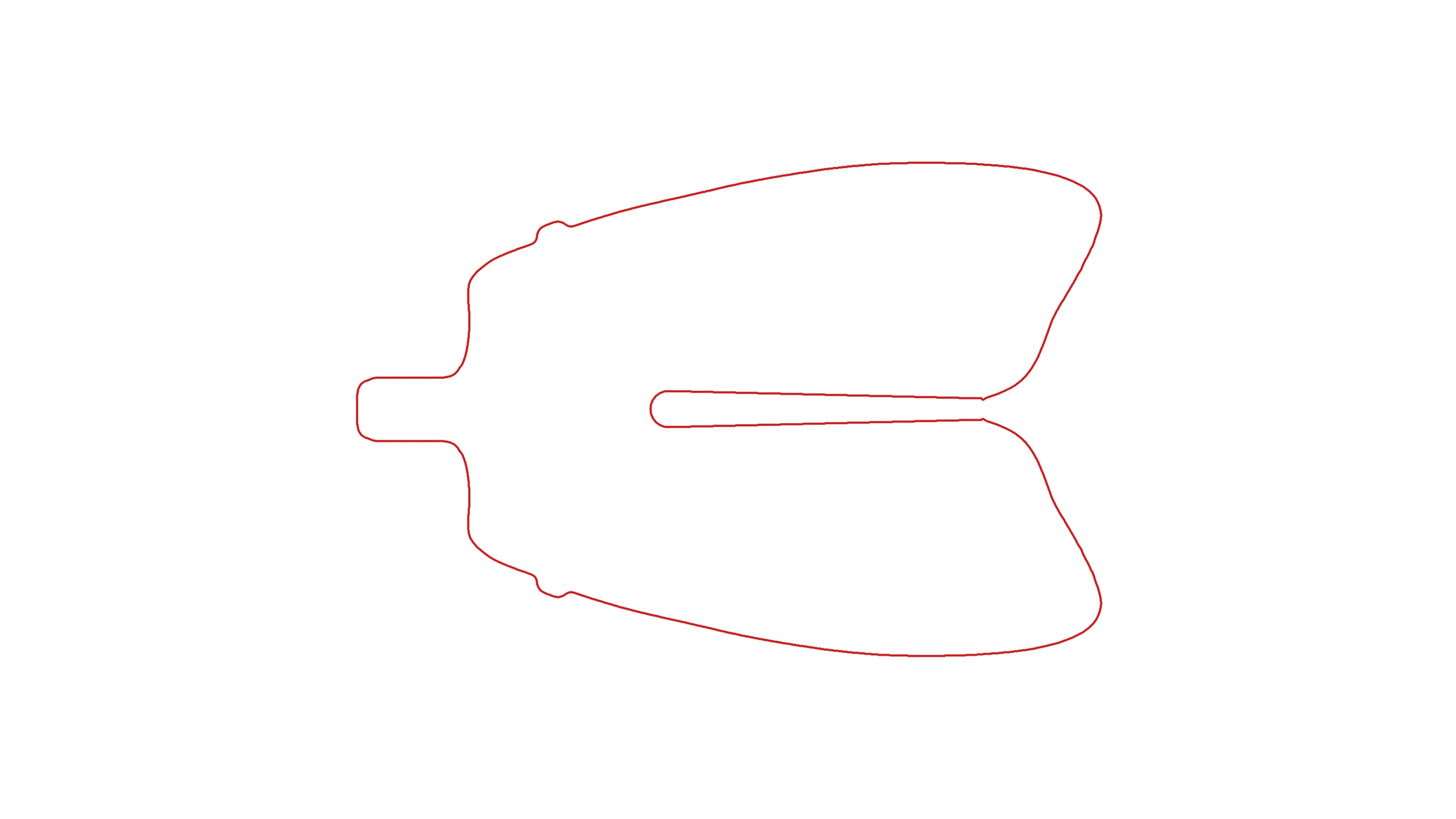

02 TRACEThe lung outline and the gap between its lobes, turned 90 degrees so the airway points to the front of the car

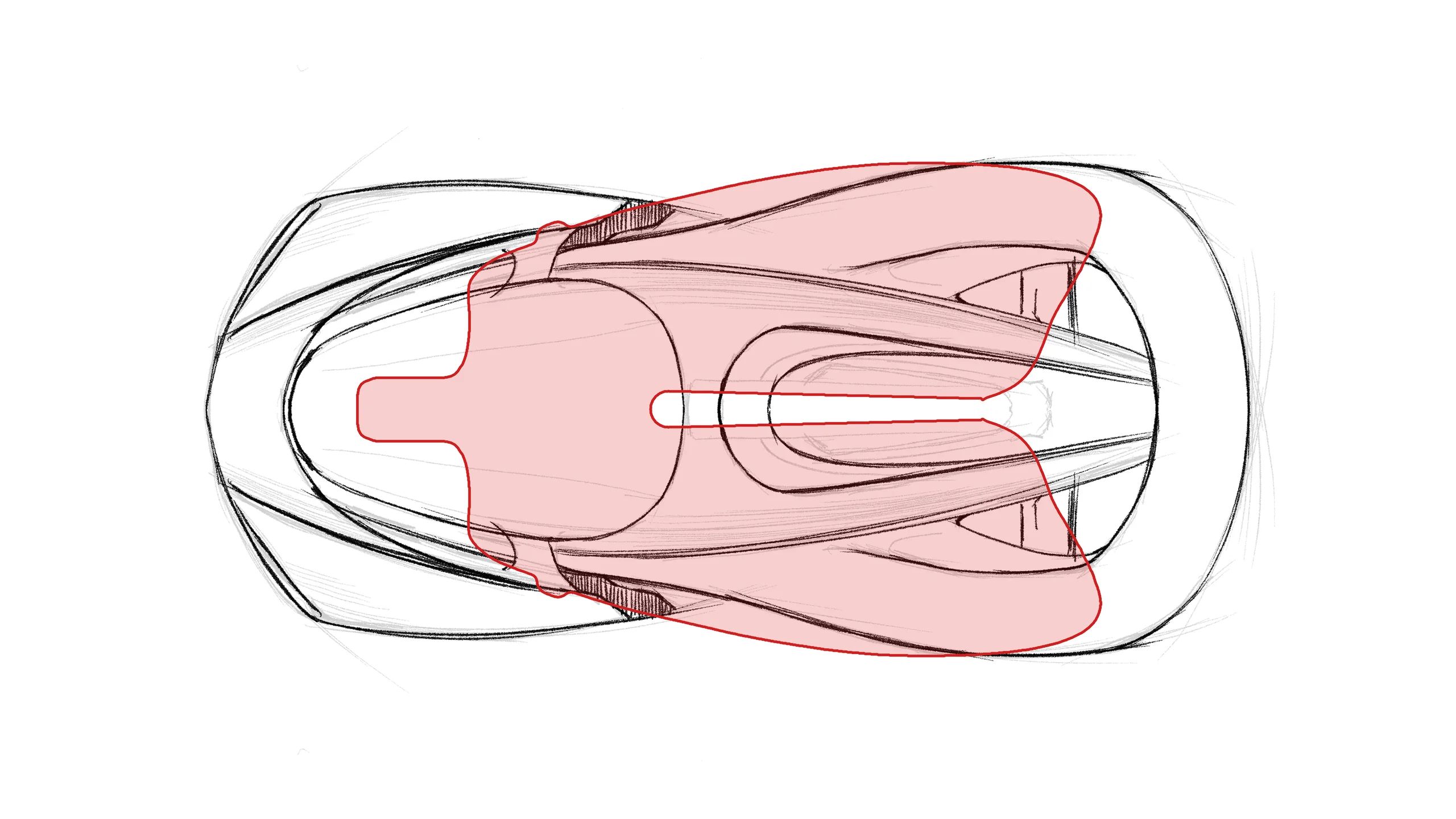

03 OVERLAYThe lung outline laid over the McLaren Z1 top-view sketch
  1. 01 REF
  2. 02 TRACE
  3. 03 OVERLAY

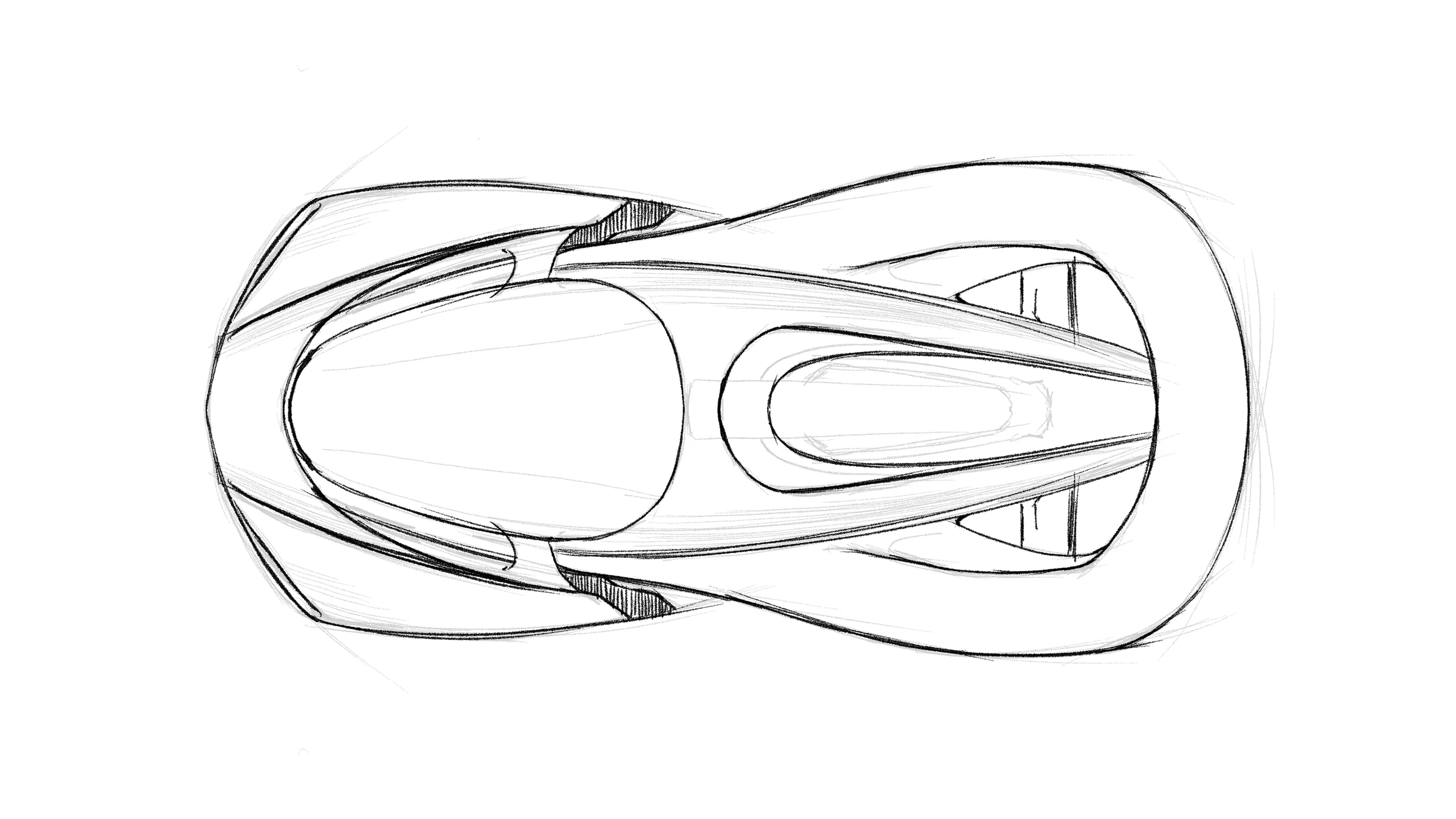

McLaren Z1 final top-view sketch
TOP VIEW DEVELOPMENT

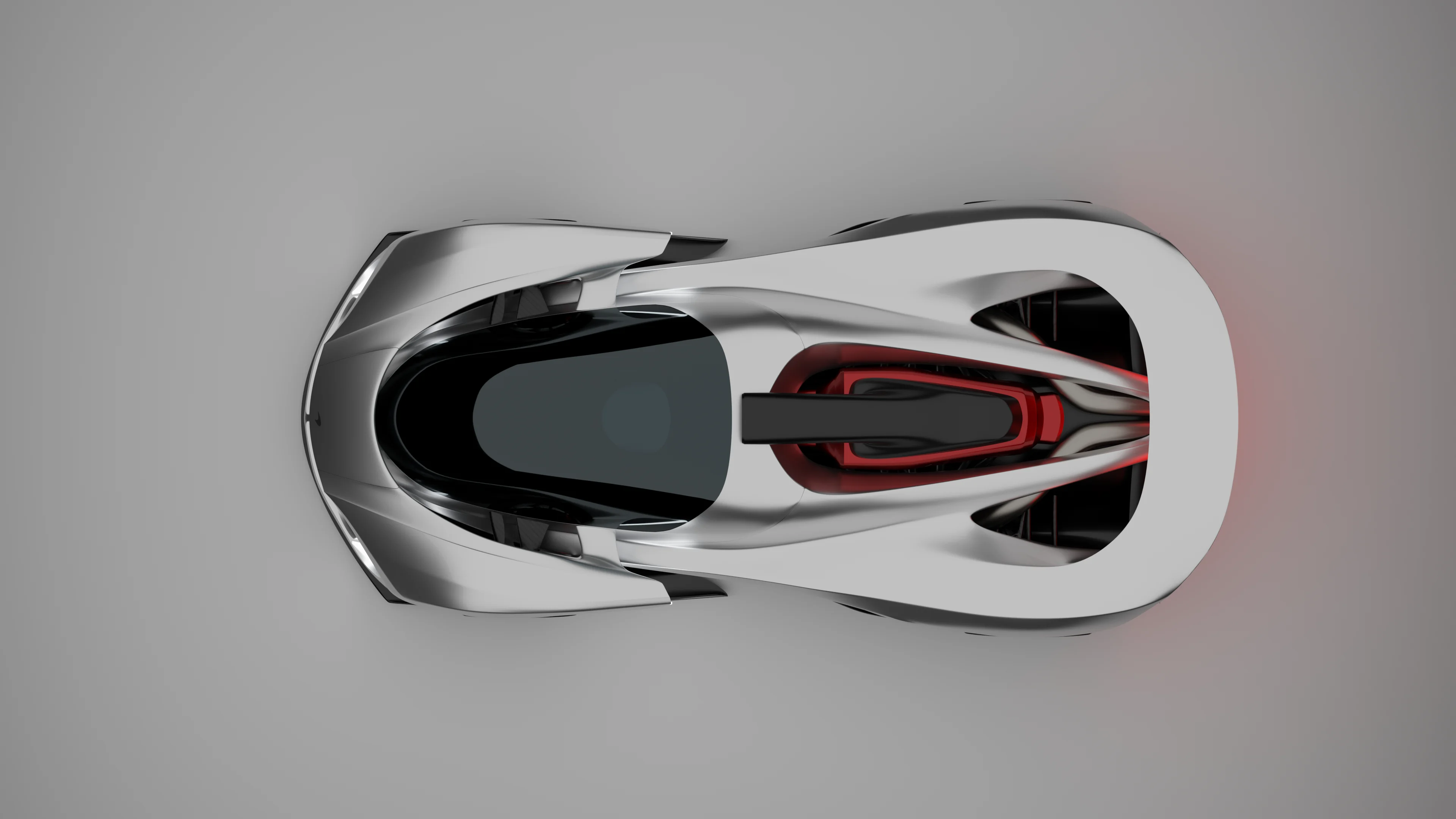

McLaren Z1 exact top view, front at left
FINAL TOP VIEW

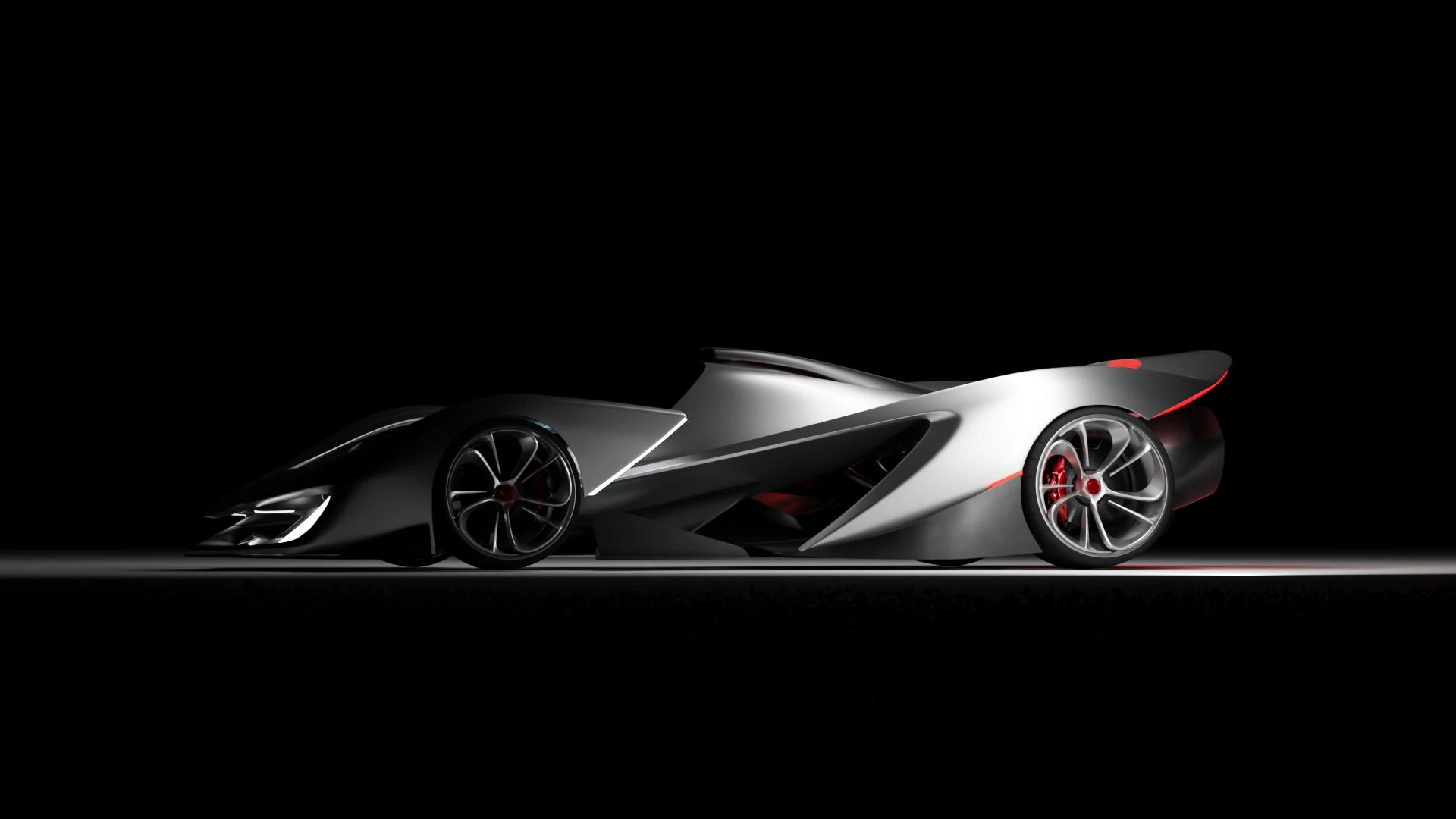

McLaren Z1 low side profile, a single highlight tracing the shoulder
04SILHOUETTE비율과 순수한 형태

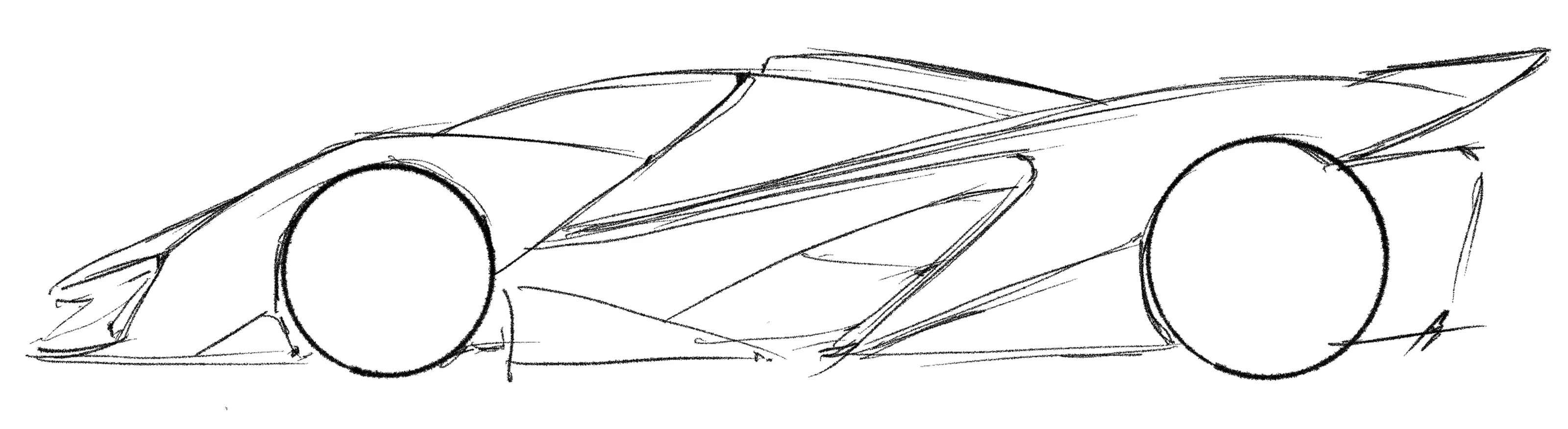

McLaren Z1 side sketch: the silhouette and character line
SIDE SILHOUETTE

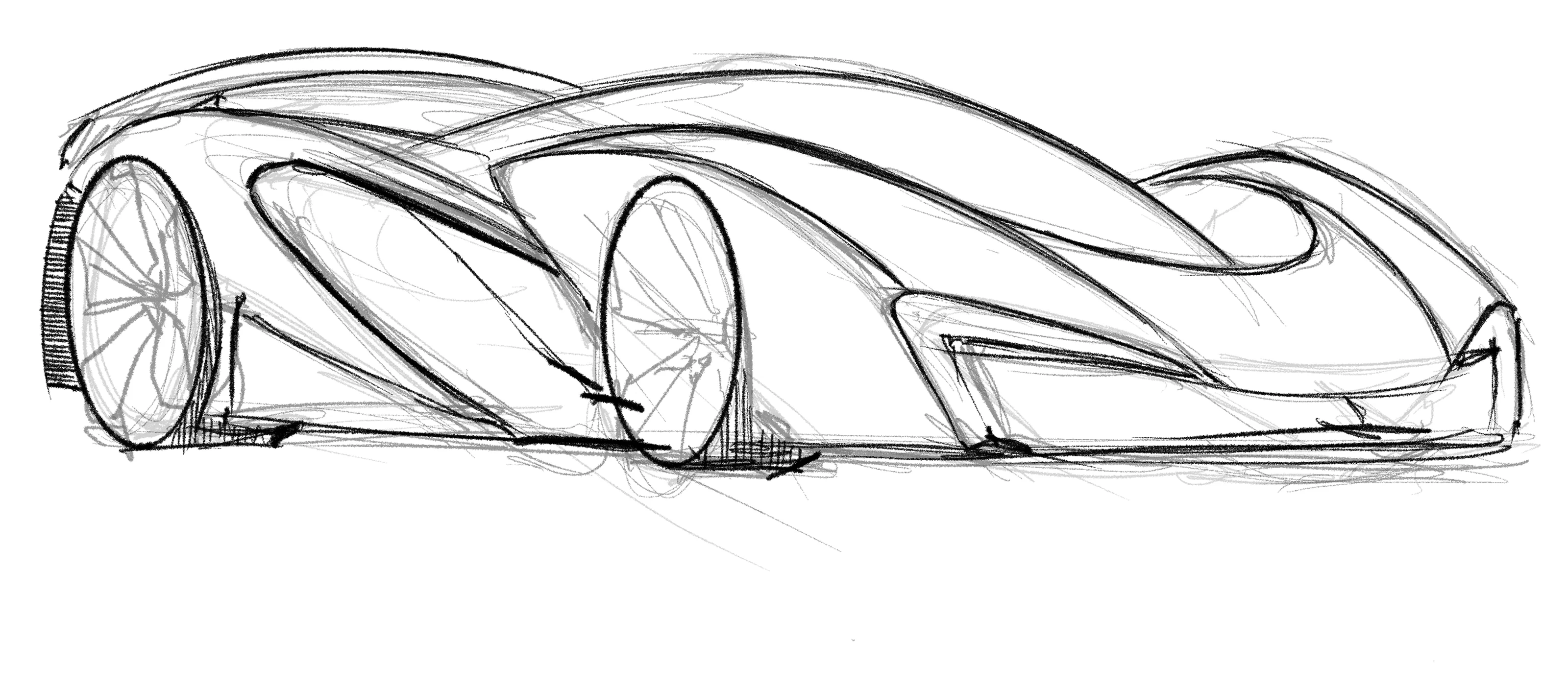

McLaren Z1 front three-quarter sketch
FRONT QUARTER SKETCH

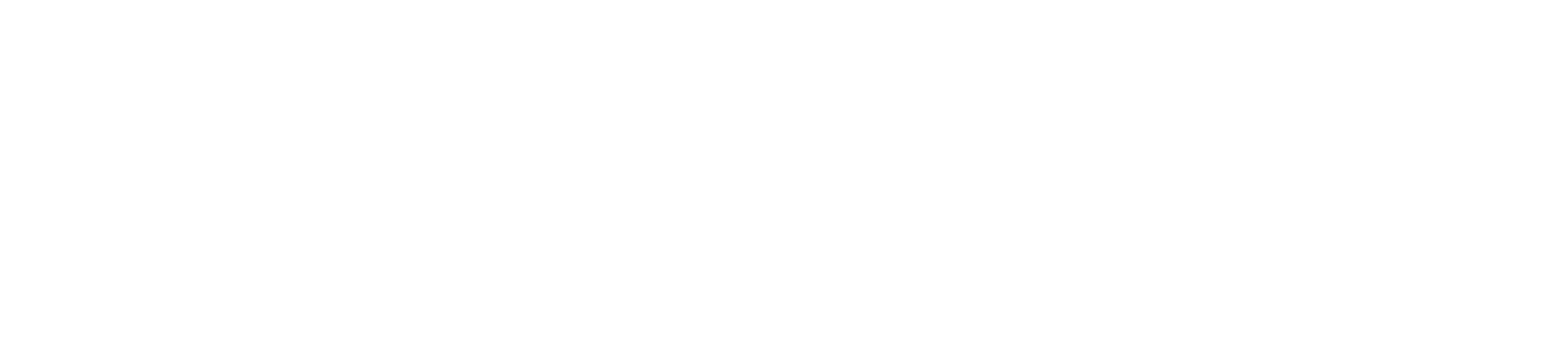

McLaren Z1 concept package, side illustration
CONCEPT PACKAGE · ILLUSTRATION
CONCEPT VALUES
Length
4,870 mm
Width
2,281 mm
Height
1,025 mm
Wheelbase
2,808 mm
Front overhang
1,162 mm
Rear overhang
900 mm
Seating
Single, central
Engine
Cosworth V12 6.5L · 1,100 HP

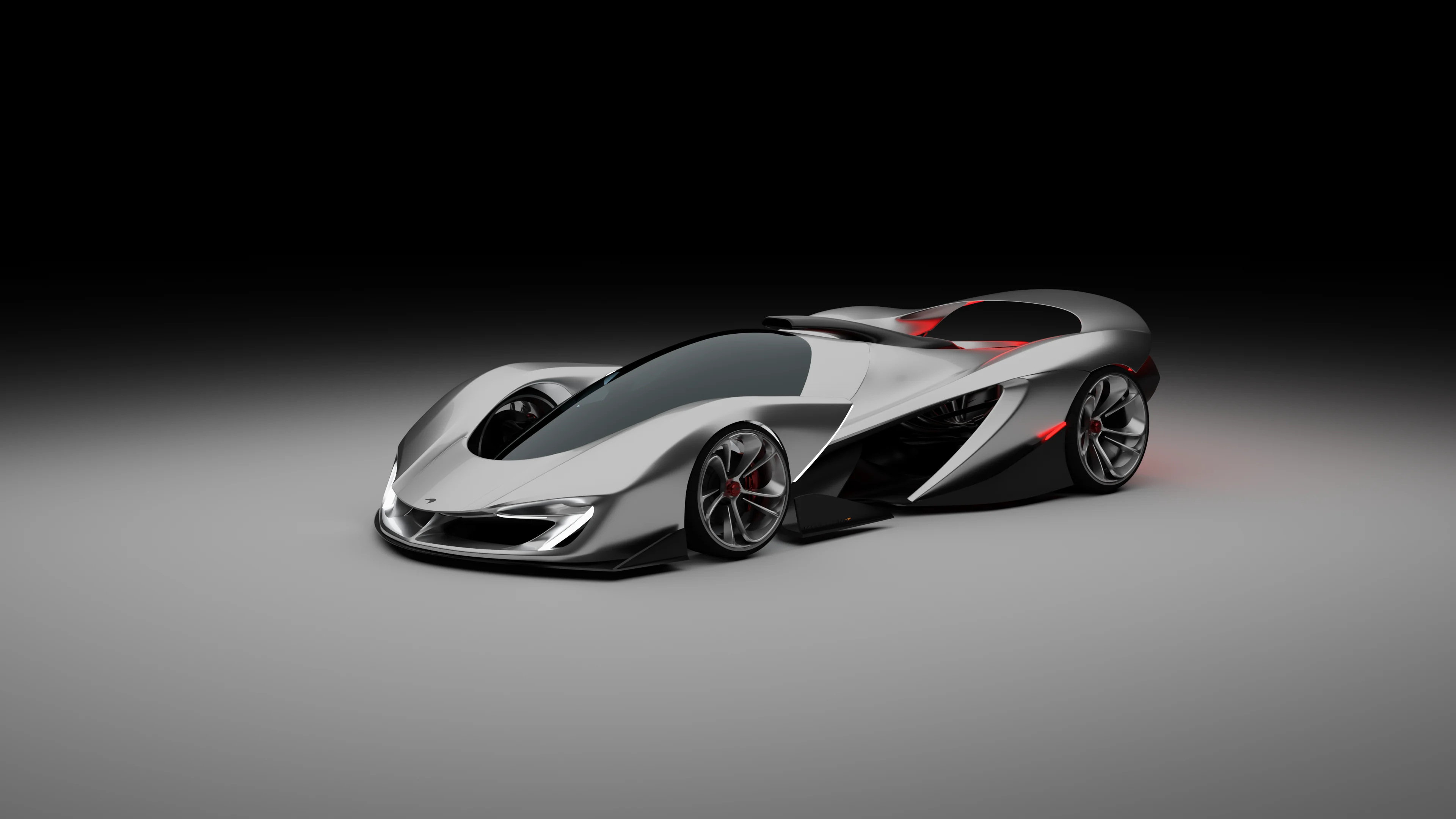

McLaren Z1 front quarter, the character line sweeping from the front fender into the side intake
05CHARACTER LINE형태를 정의하는 선

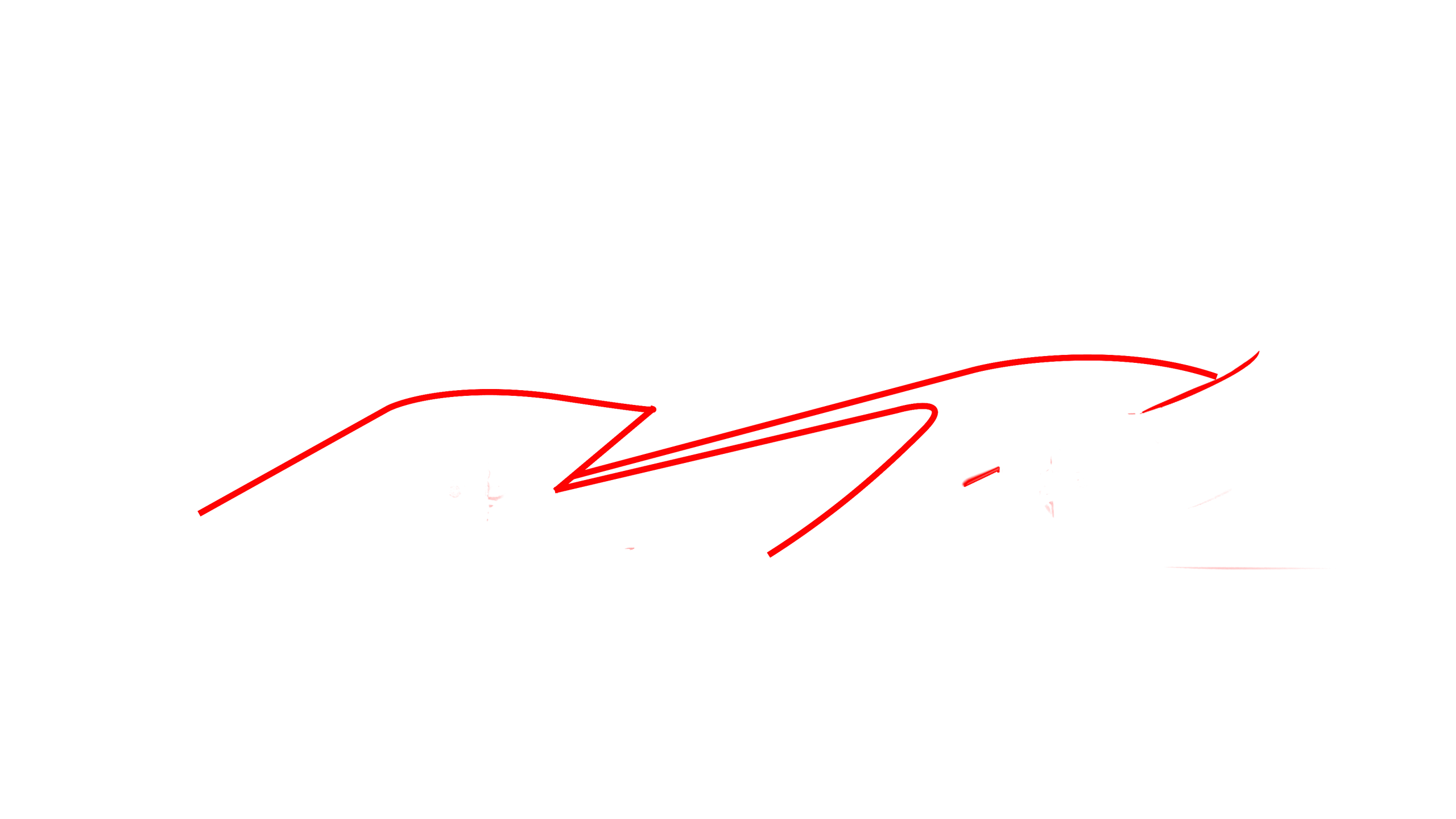

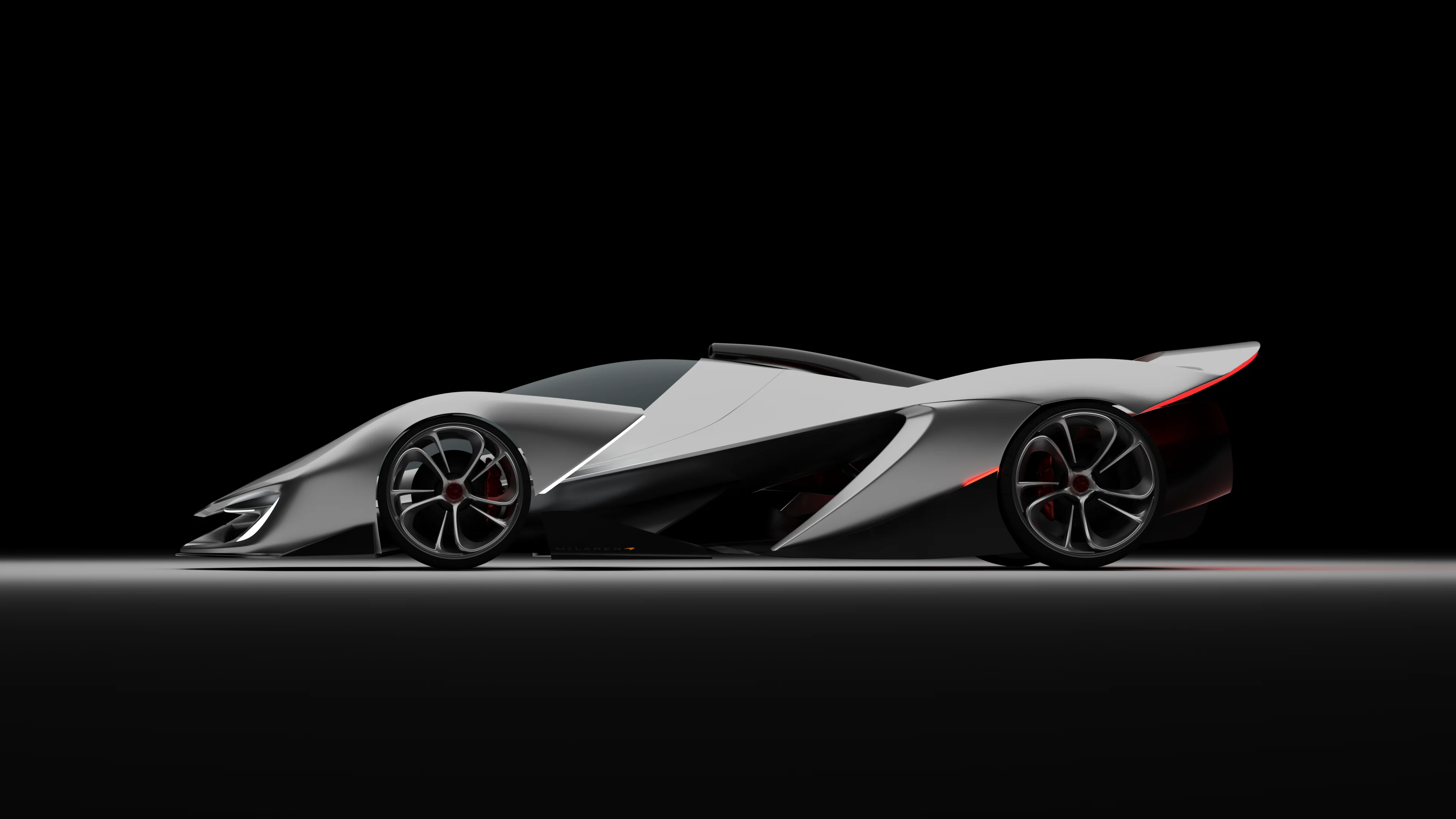

McLaren Z1 exact side view; the character line is drawn over it from the nose to the rear wing
ONE CONTINUOUS STROKE

Drawn as a single continuous stroke, the character line carries McLaren's heritage design language — its sweep and kink inspired by the brand's boomerang-shaped Speedmark — while pushing the proportions toward a purpose-built, explosive hypercar silhouette.

맥라렌 특유의 헤리티지와 라인 언어를 지키면서도, 목적이 분명한 비율의 폭발적인 하이퍼카 실루엣을 만들고자 했다. 라인의 꺾임과 흐름은 맥라렌의 부메랑(Speedmark) 로고에서 영감을 받았다.

06BREATHING AERODYNAMICS공기와 함께 움직이는 형태
McLaren Z1 exact side view with conceptual airflow arrows: intake, flow and exhaust

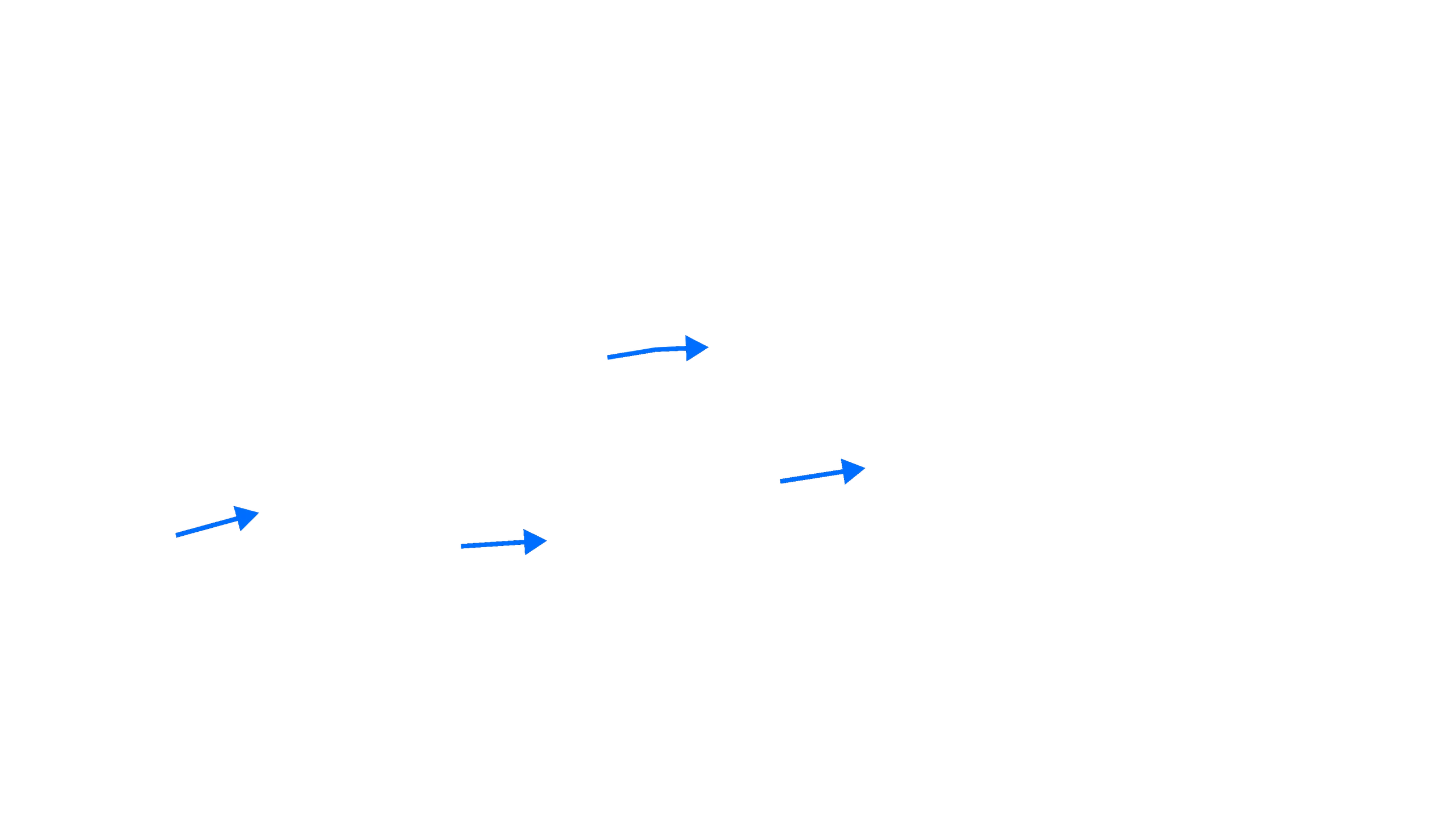

  1. INTAKE

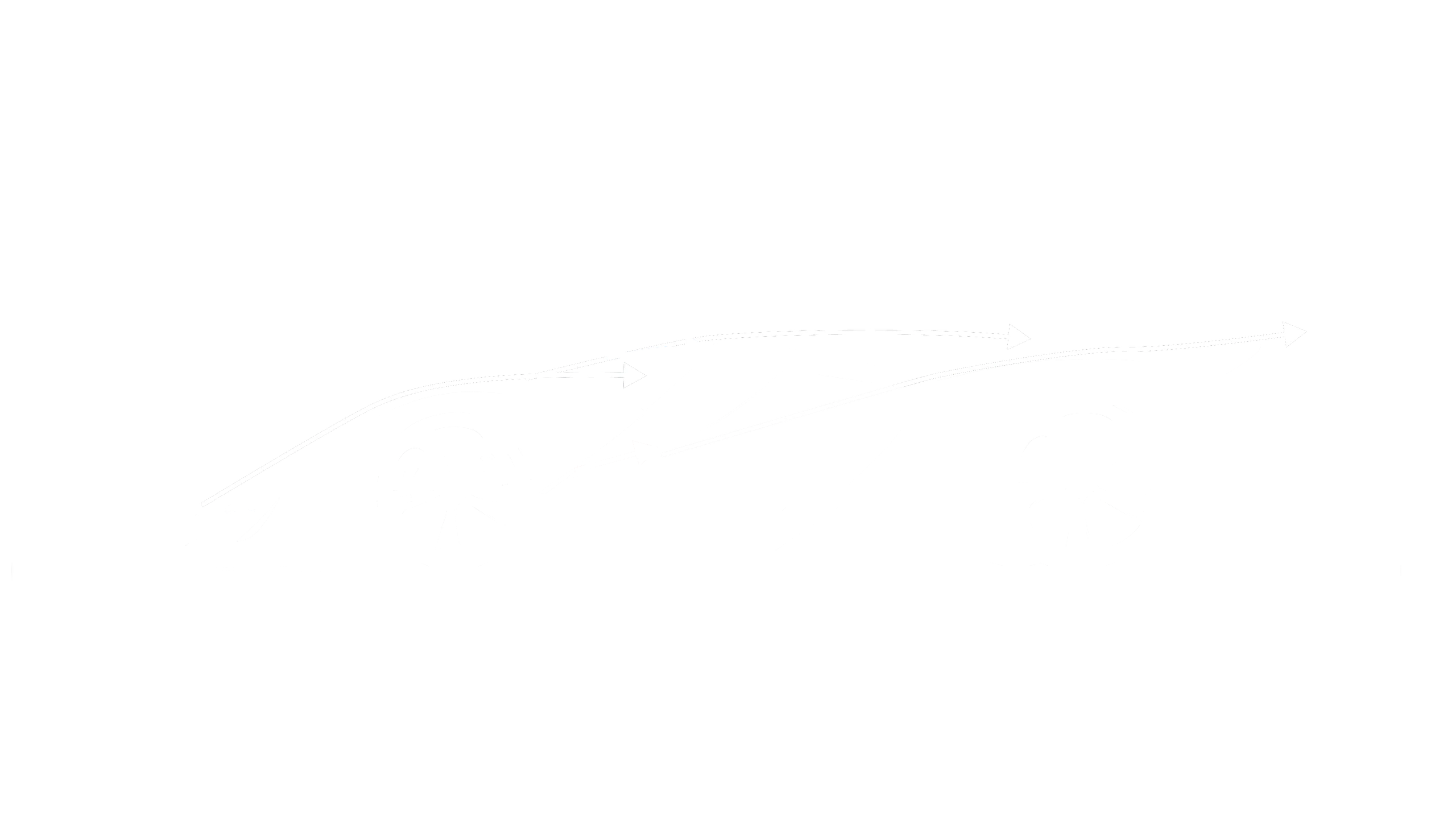

  2. FLOW

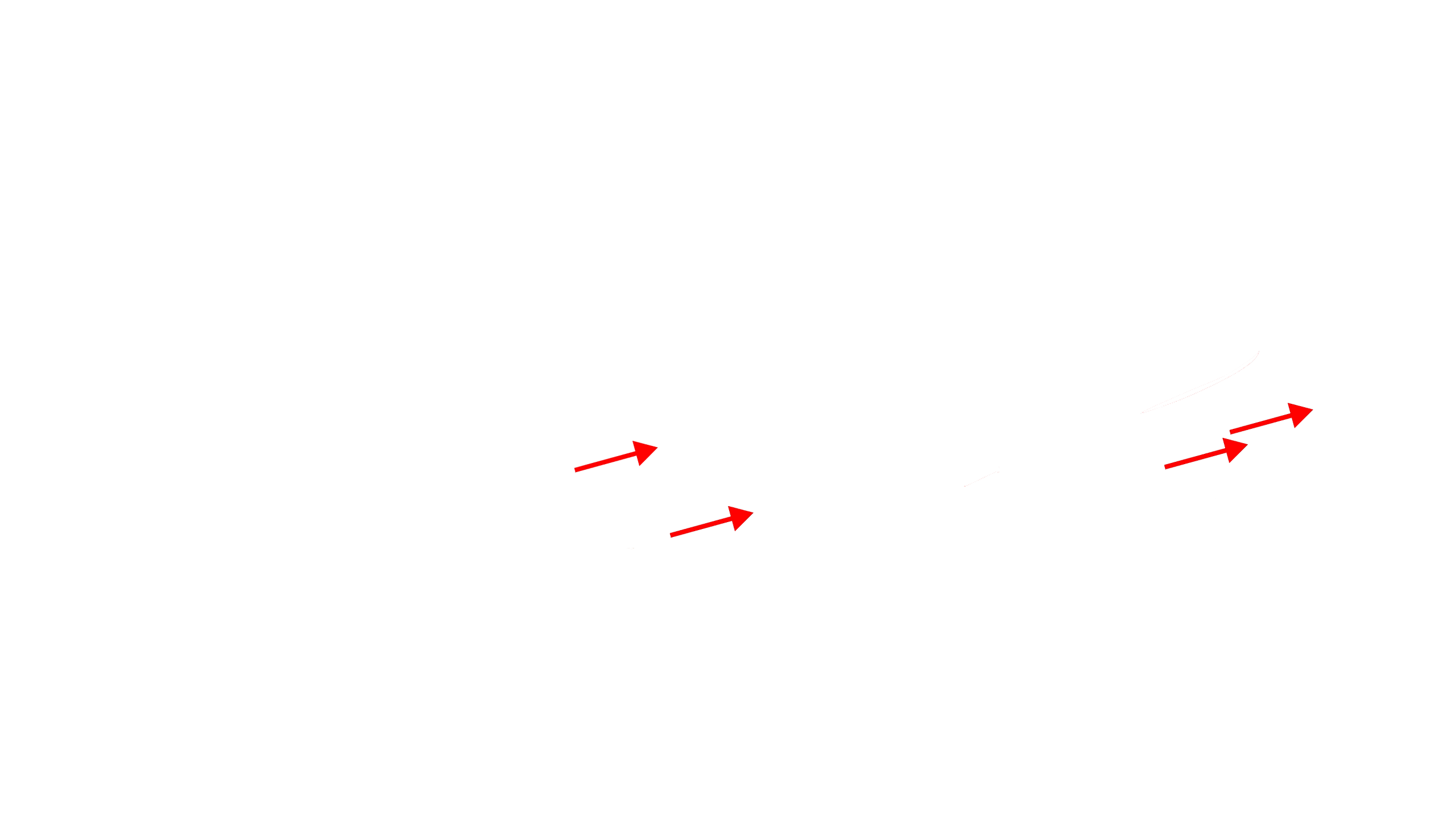

  3. EXHAUST
A SINGLE RESPIRATORY SYSTEM

Air enters through the nose, the roof scoop and the side intakes — feeding and cooling the V12 — then follows the character line before exiting through the diffuser and rear wing. Like a lung drawing breath, the whole car works as a single respiratory system.

공기는 노즈와 루프, 사이드 인테이크로 들어와 V12와 차체를 식히고, 캐릭터 라인을 따라 흐른 뒤 디퓨저와 리어 윙을 통해 빠져나간다. 숨을 들이쉬고 내쉬는 폐처럼, 차 전체가 하나의 호흡 기관으로 작동한다.

CFD STUDY

SimScale streamlines around the Z1 model · concept-stage study

  • FAST
  • SLOWING
  • SLOW

In the CFD, blue means slow flow — not intake, as it does in the diagram above.

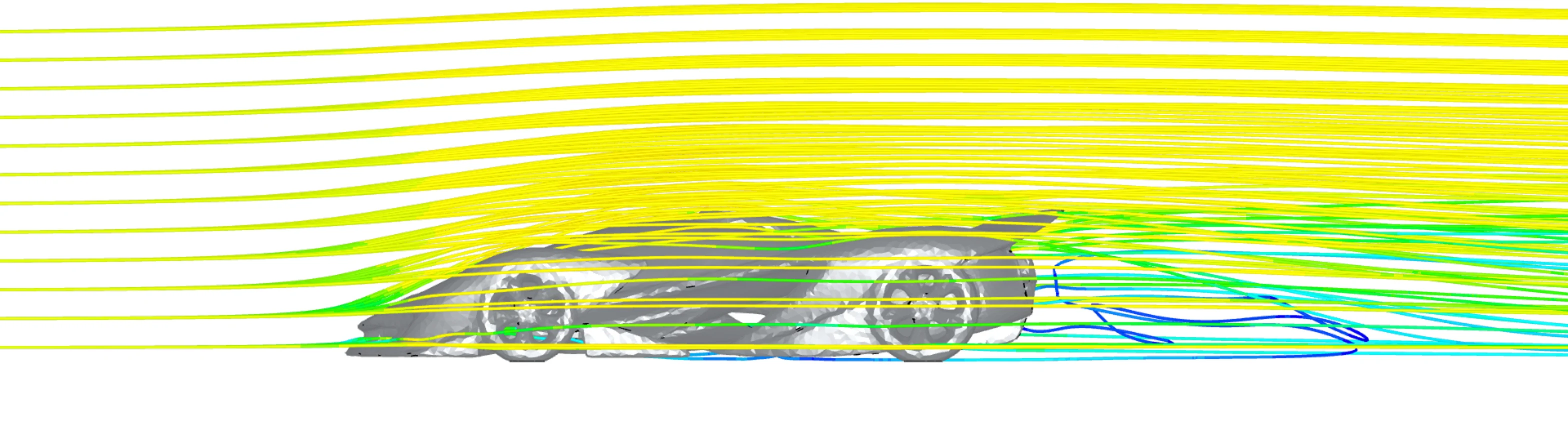

CFD study, side: streamlines run smoothly from the nose over the roof to the rear wing, slowing into a wake behind and under the car
SIDE

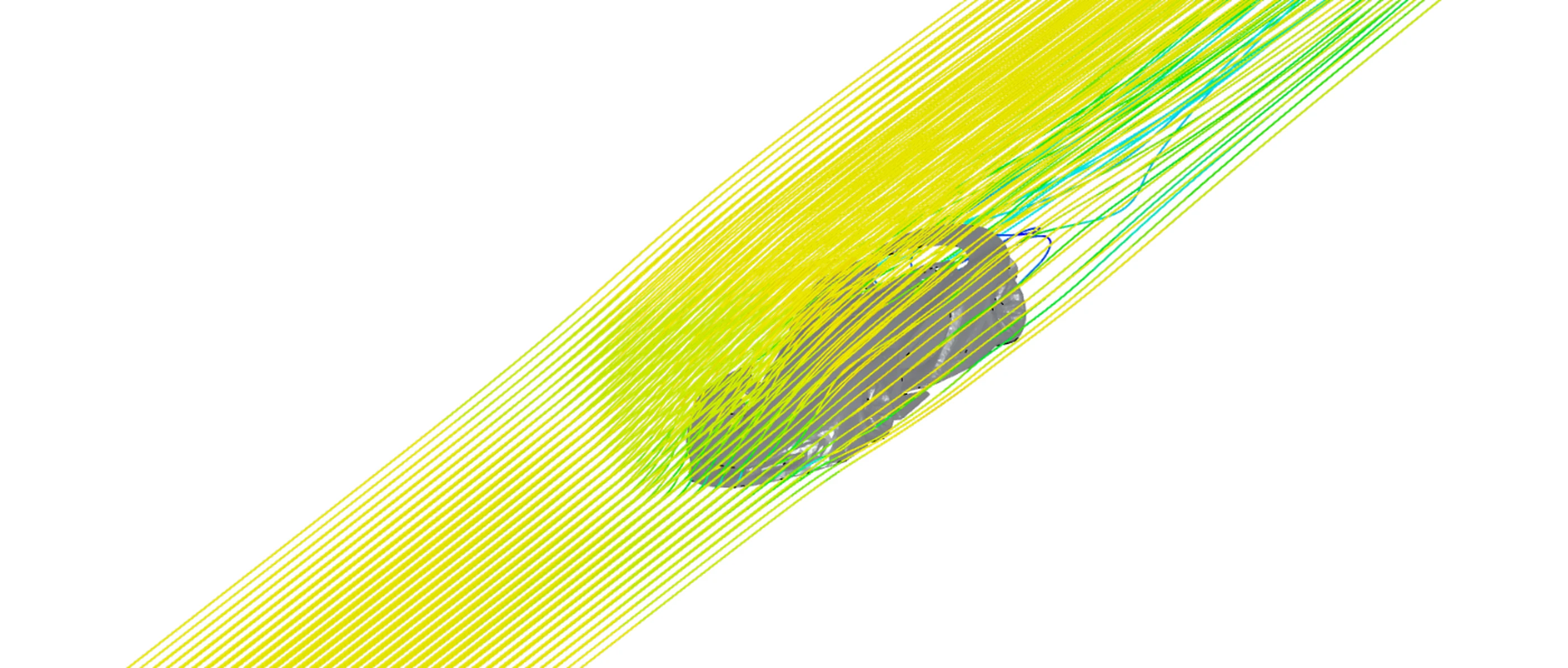

CFD study, three-quarter view from above: streamlines wrap the body and slow behind it
3/4 FROM ABOVE
07RELEASE / CIRCUIT마지막으로 달리는 순간

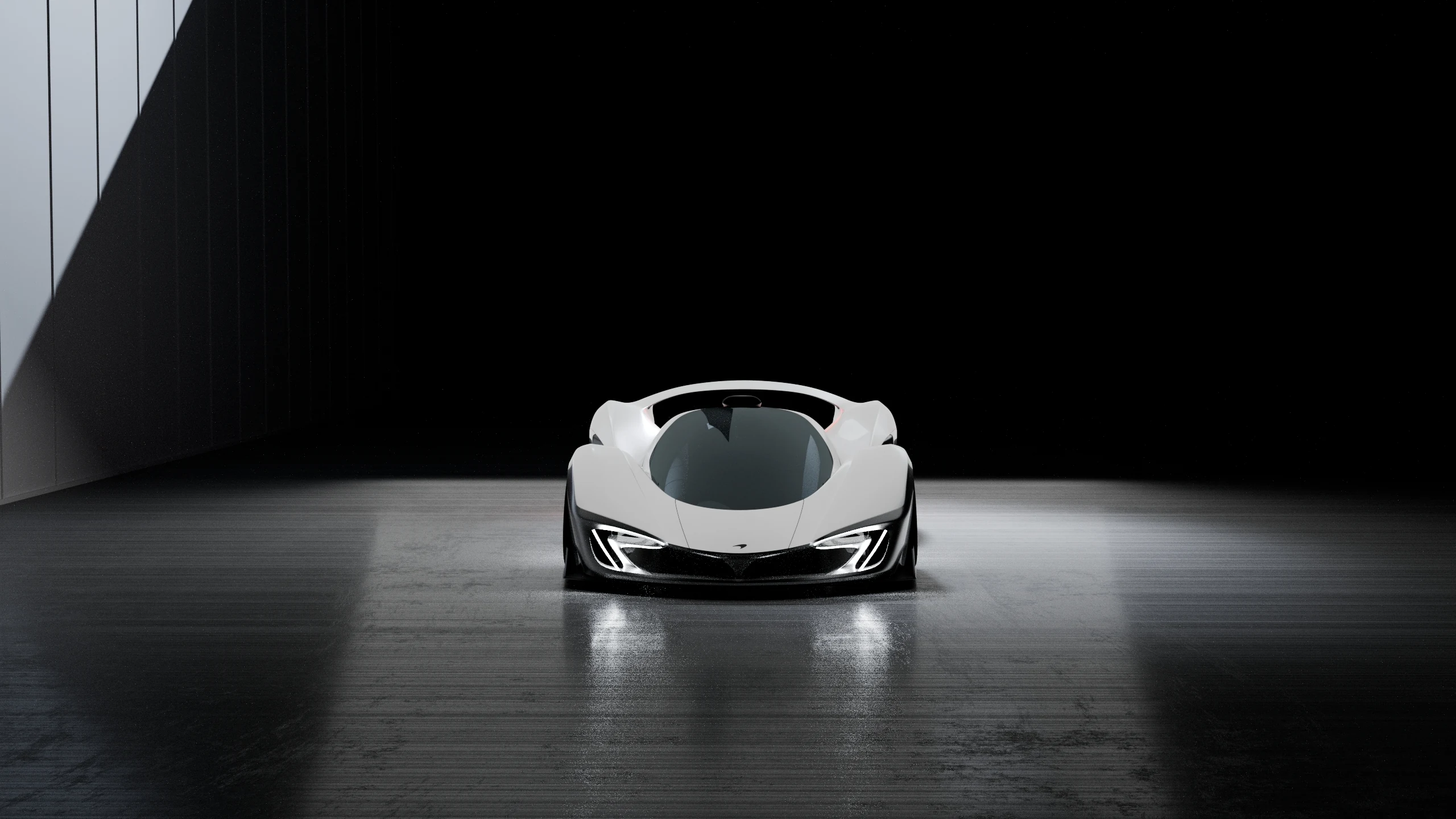

McLaren Z1 front, standing in the architectural studio

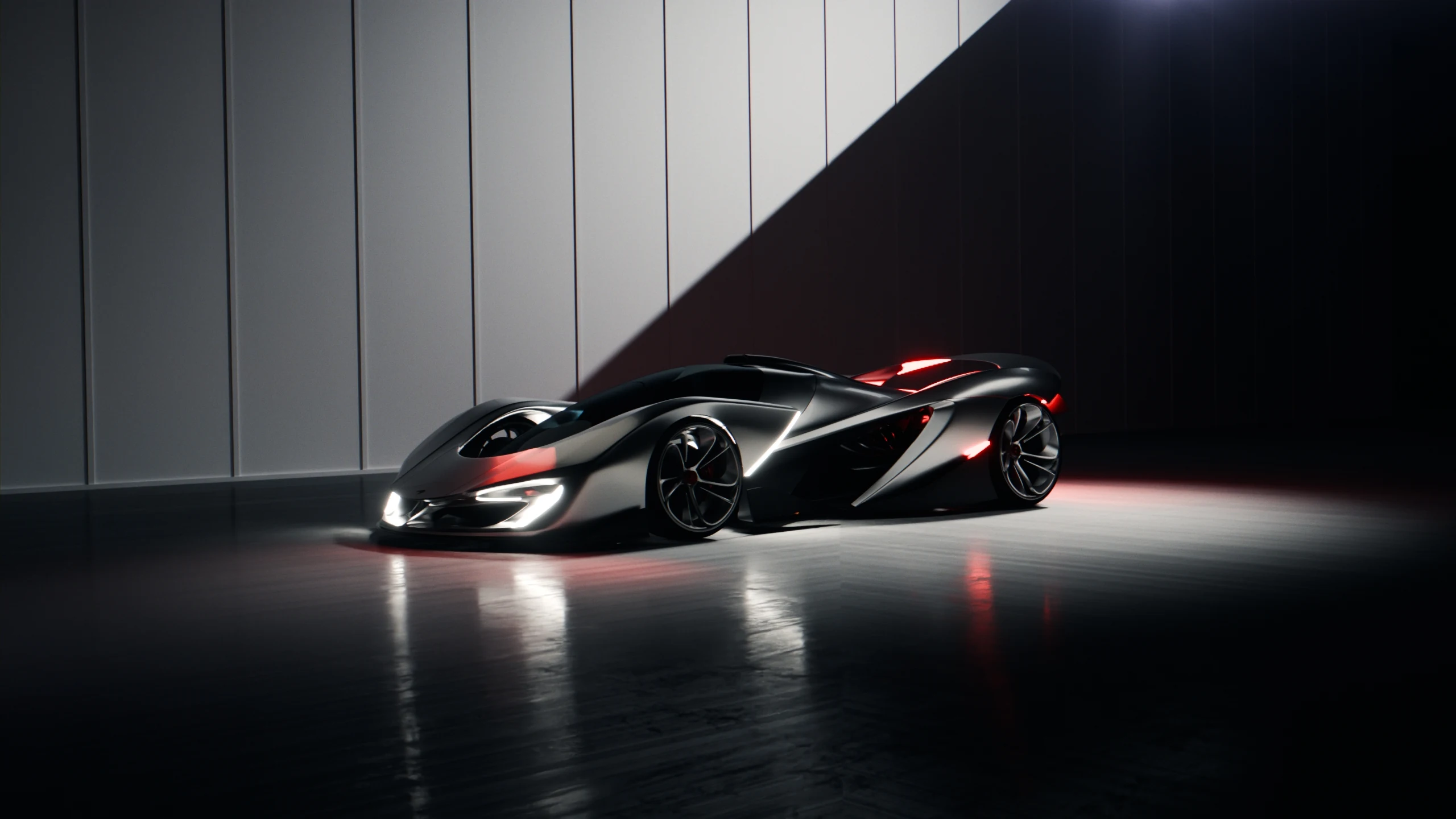

McLaren Z1 front quarter under a diagonal beam

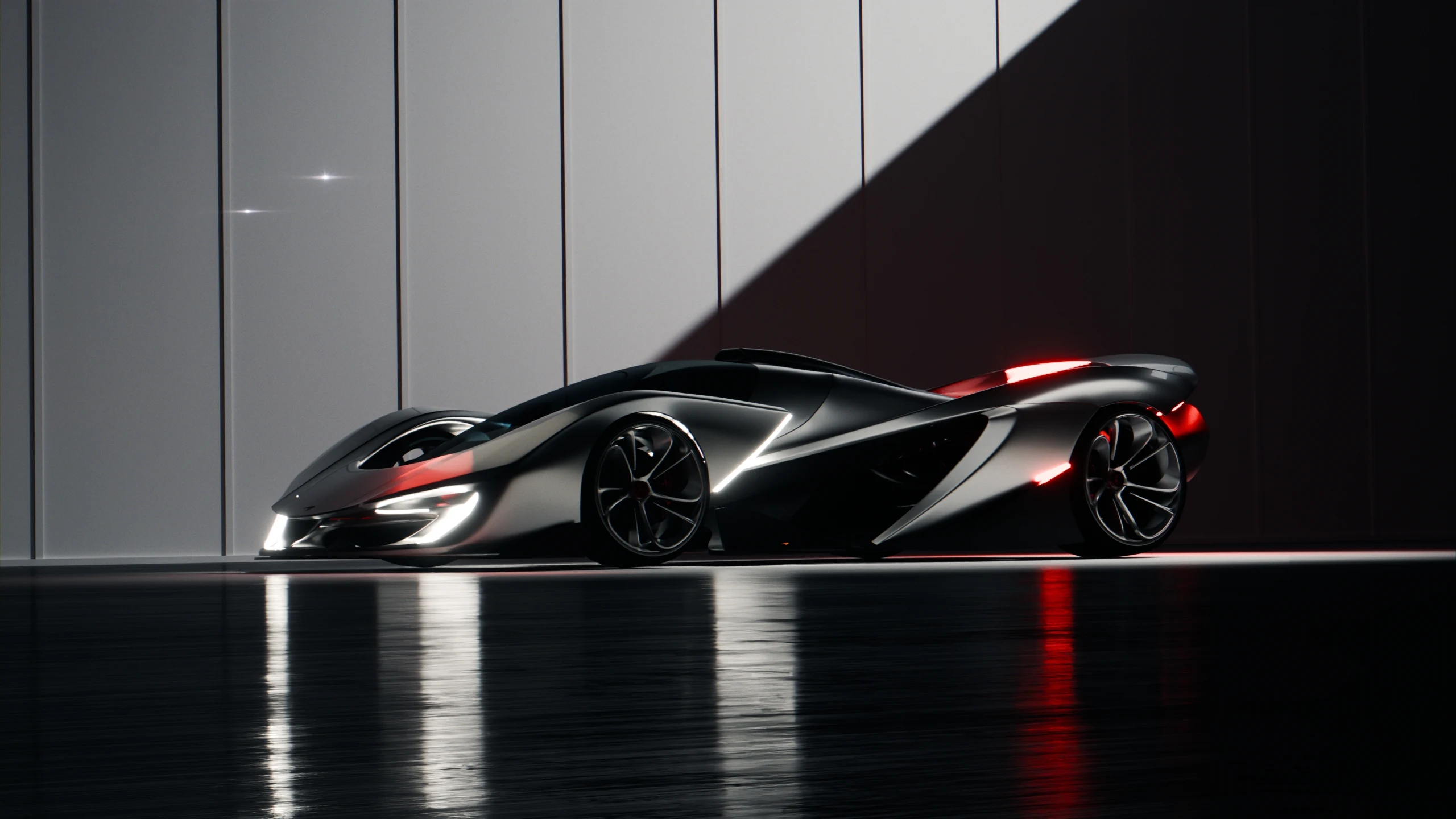

McLaren Z1 low side, light across the shoulder

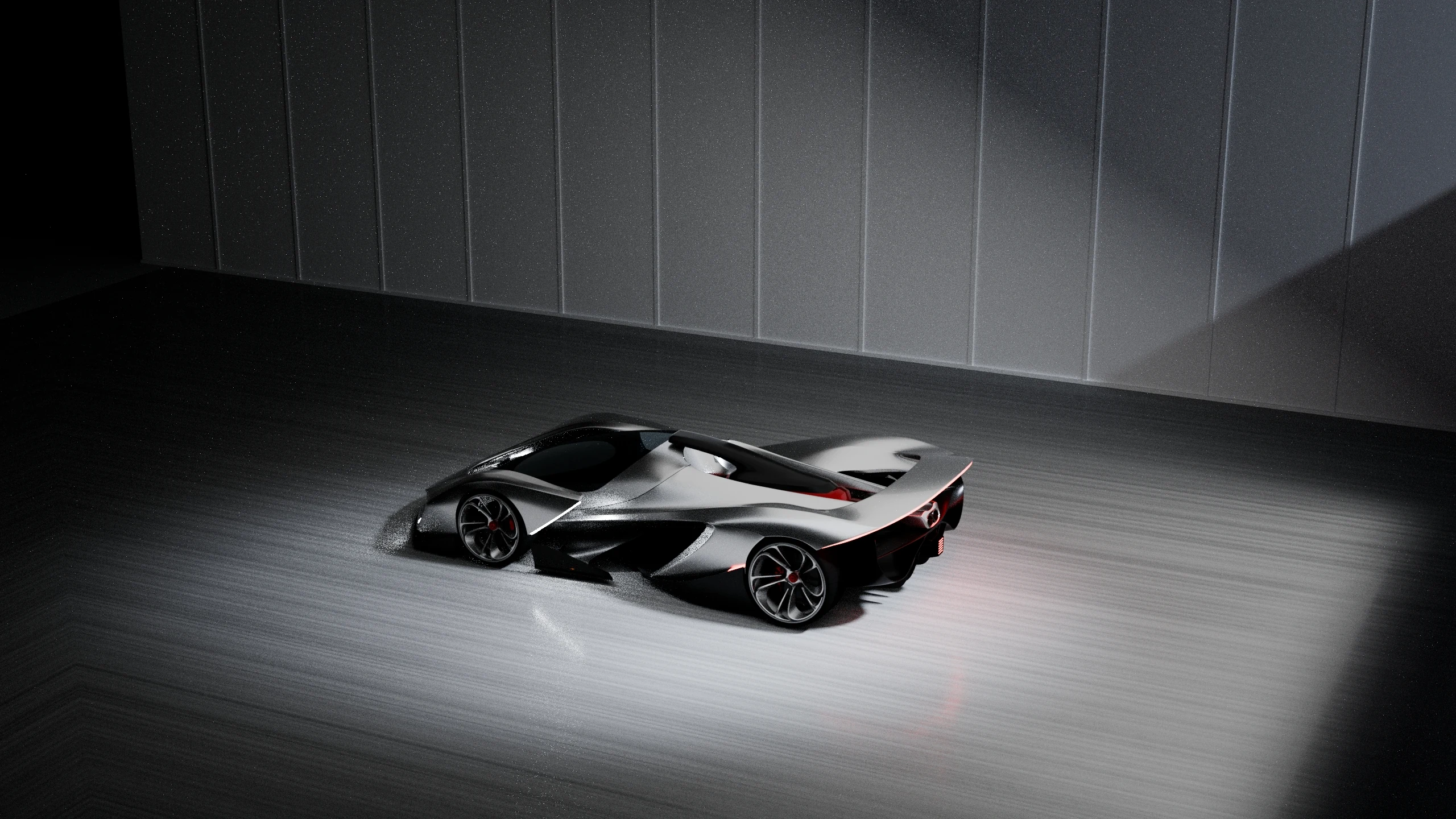

McLaren Z1 rear quarter, leaving the studio
08KEY VIEWS주요 뷰 감상

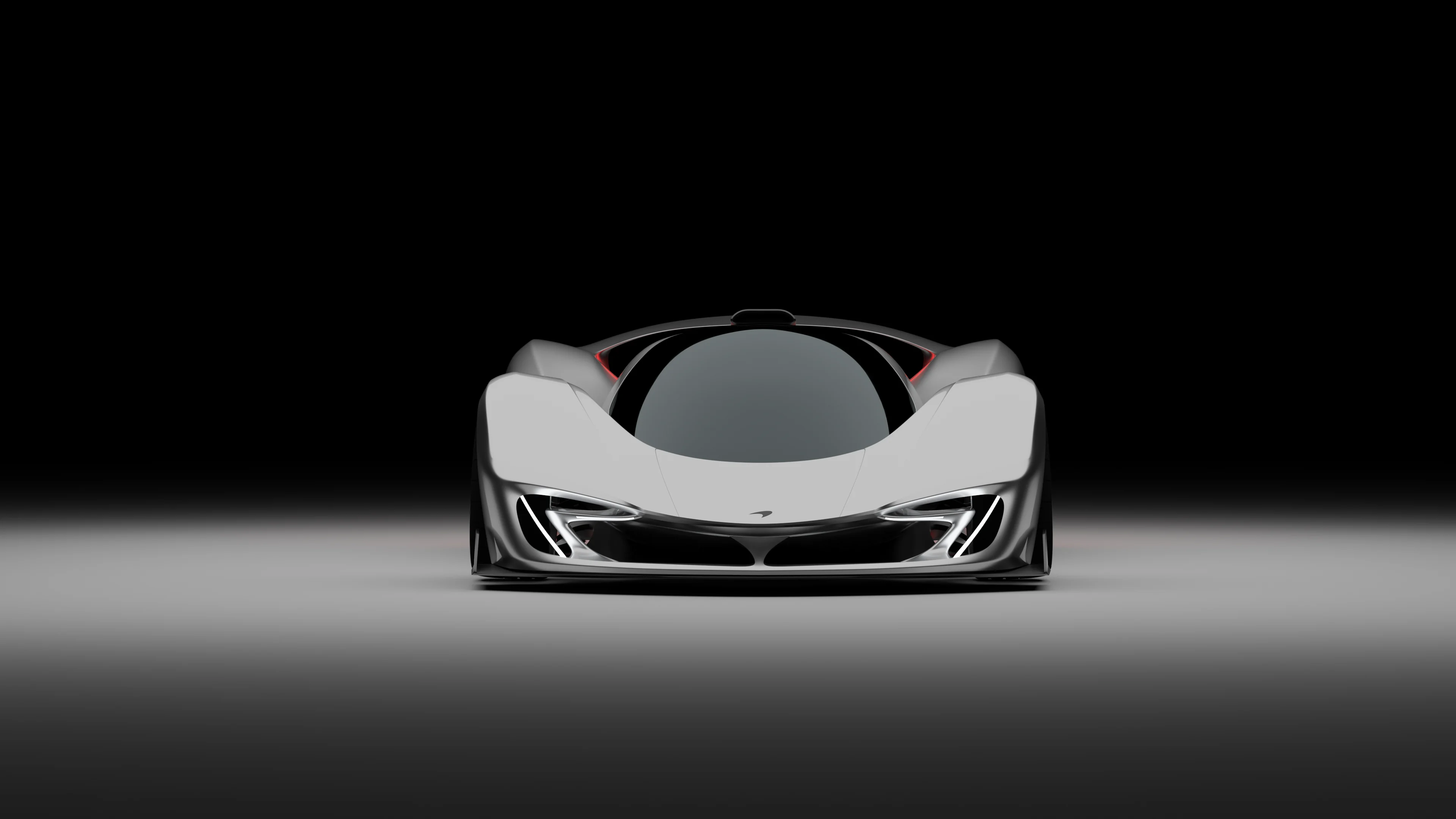

McLaren Z1 exact front view

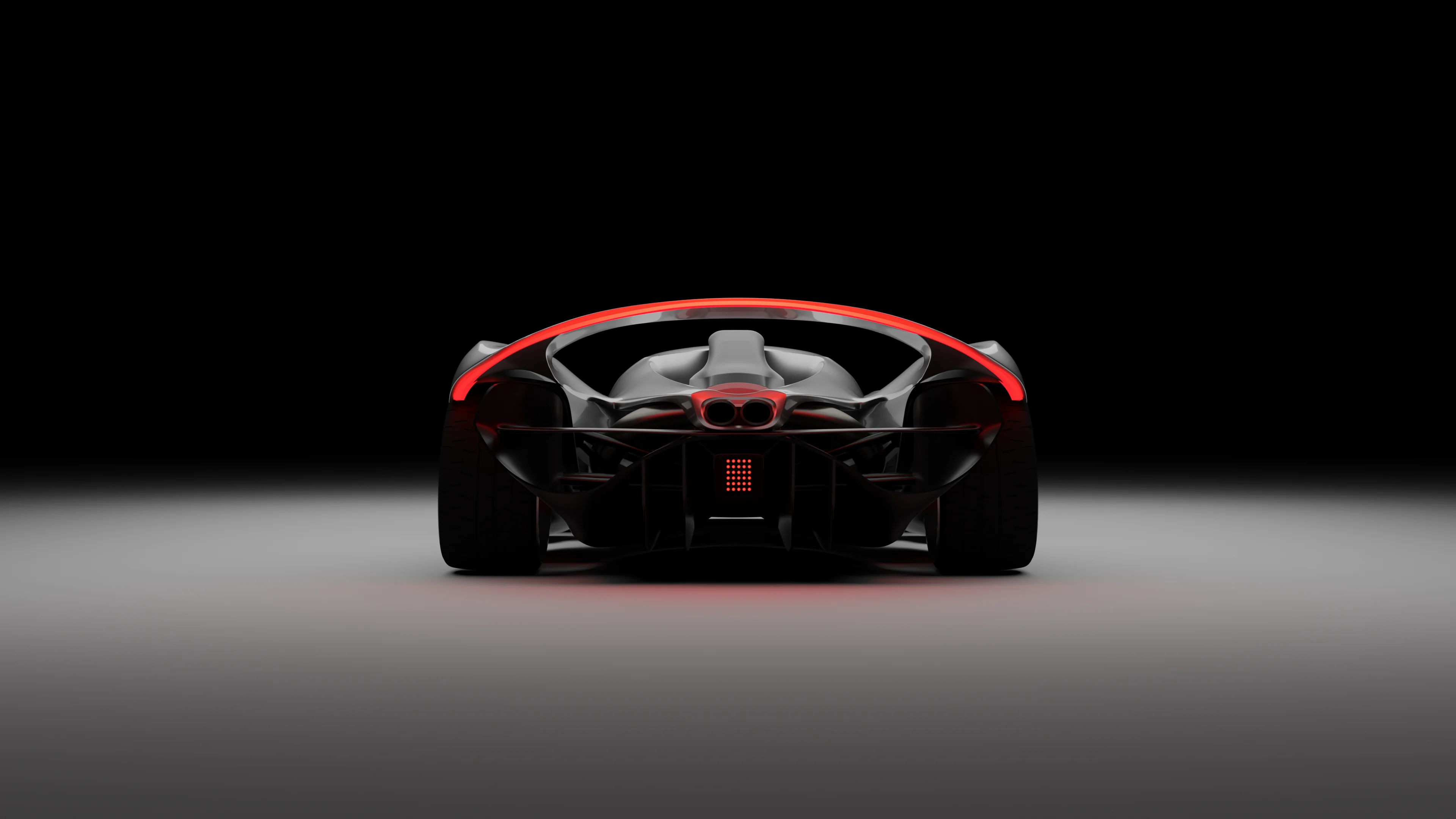

McLaren Z1 exact rear view

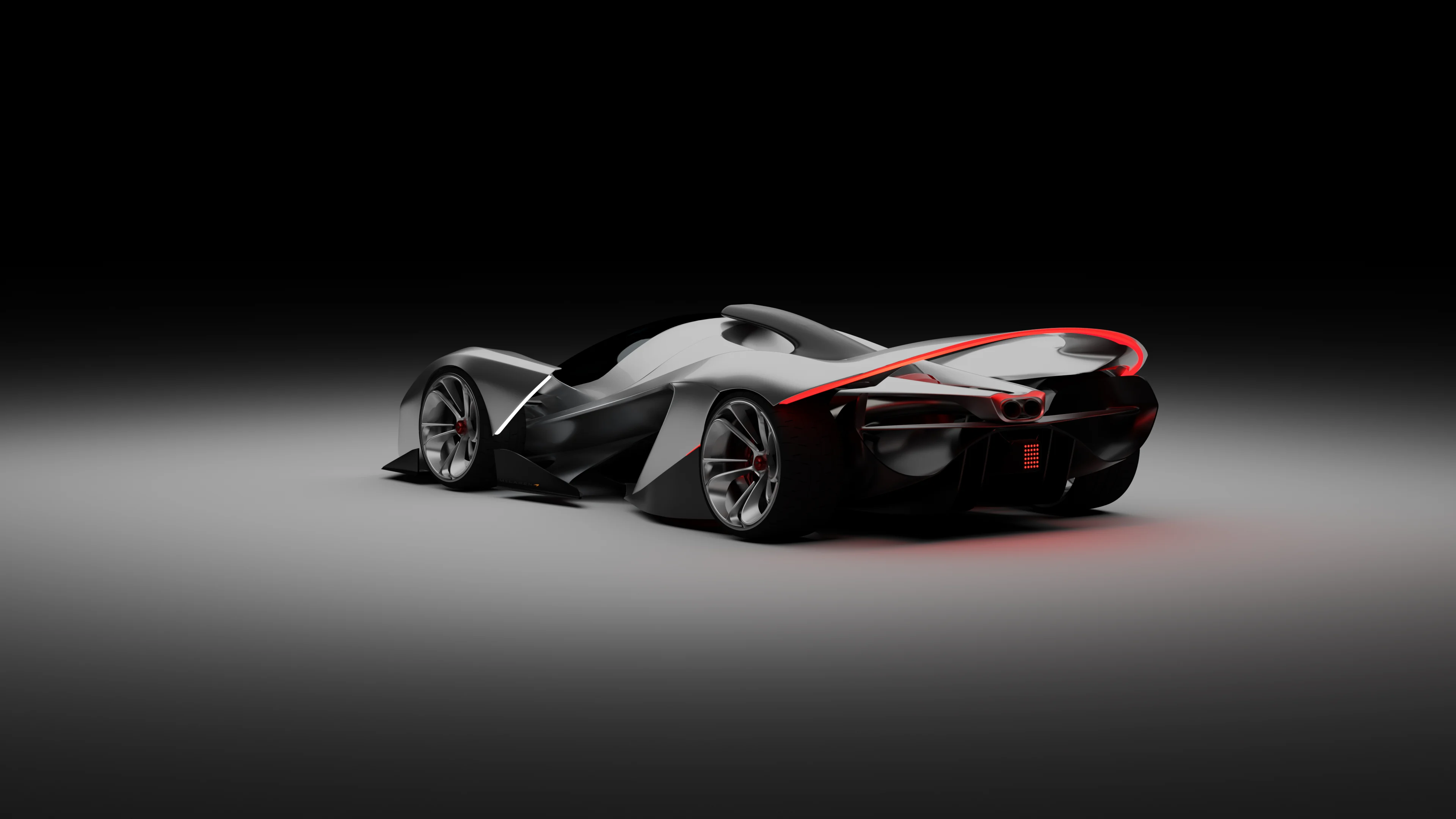

McLaren Z1 rear three-quarter view

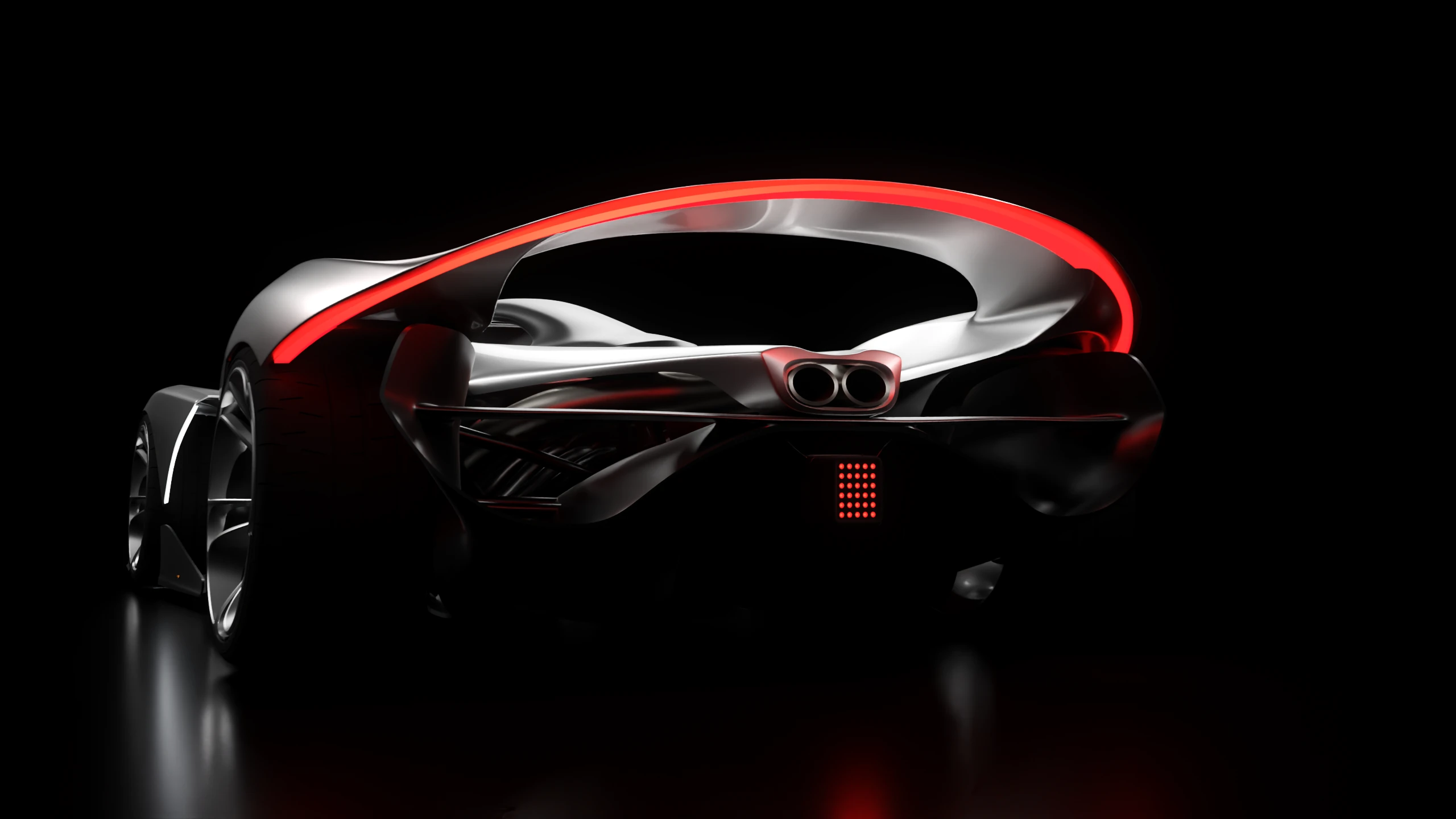

McLaren Z1 low rear quarter; the surroundings gradually darken, then the remaining red rear lights fade with continued scrolling
09FINAL BREATH마지막 숨, 그리고 정지
McLAREN Z1THE LAST OVERTUREHongik University Industrial Design · Graduation Exhibition 2026.10.27–10.31
Automotive Design
Kyutae Park박규태
3D Modeling
Kyutae Park박규태
Interactive Direction
Jiwon Lee이지원
Web Development
Jiwon Lee이지원
Instagram
@12__21_rbxo
Email
kyutae1221@gmail.com

Independent design study. Not affiliated with McLaren Automotive.
